guilltion from China manufacturer - RUIAN DAPENG PRINTING MACHINERY FACTORY

guilltion

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

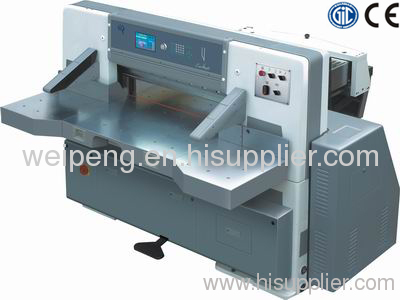

Model No.: QZK780D

Product Type: Others

Processing Type: Cutting Machine

Means of Transport: Ocean

Certification: CE

Brand Name: weipeng

automatic

Model	QZK780D	Unit
Max cutting width	78	cm
Max cutting length	78	cm
Max cutting height	12	cm
Max clamping pressure	30000	N
Cutting speed	45	Cycles/min
Sending paper motor power	3	kw
Cutting motor power	0.4	kw
Wind pump motor power	0.55	kw
Net weight	1800	kg
External dimension	183×195×151	cm
Packing dimension	215×137×185	cm

Characteristic:

1. Usage: QZYK-D Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2. COMPUTER: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.

3. Single Hydraulic Device: The hydraulic device pass CE certificate.

4. Double Guide Device: the paper pusher adopts double linear guide and roller ball screw. Our high rigidity linear guides design has its patent no: ZL 2005 2 0074357.0

5. Photo cell: it is equipped with a photo cell safety protection device.

6. Over load protection device; convenient knife changing device.

7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8. Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.

9. Cutting controller: both of the user's hands operate the machine. It can cut paper in one time.

10. Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.

11. Main electric device are imported from Germany, French, Japan, etc.
